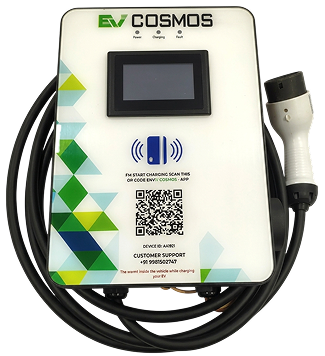

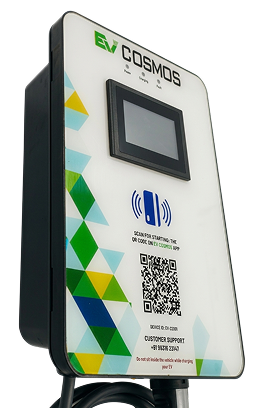

AC Level 2 Charger (Home) - 7.5 kW

Power & Electrical Specifications

Charger Capacity: 7.5 kW

Max Output Voltage: 230V AC

Max Output Current: 32 A

Input Voltage: 220V ±10% (Single Phase + Neutral)

Input Frequency: 50 Hz

Power Factor: 0.99

Physical & Design Features

Mounting Type: Wall-mounted

Dimensions: 400 × 120 × 280 mm

Weight: 8 kg

Enclosure Material: FRP

Cooling: Natural Cooling

Connectivity & Communication

Connector Type: Type 2 / Single Gun

Outputs: 1

Vehicle Communication: CP-based

Server Communication: OCPP v1.6 or above (Ethernet / Optional GSM)

User Interface & Access

Display: 4.3-inch Touch Screen

Authentication Methods:

Mobile App

RFID Card

QR Scan

Password Login (not for home charger)

Environmental Conditions

Operating Temperature: -20°C to 50°C

Storage Temperature: -20°C to 55°C

Humidity Range: 5% to 95%

Safety Features

Internal Safety:

Over Current Protection

Under Voltage Protection

Leakage Protection

Short Circuit Protection

Over Temperature Protection

External Requirements:

MCB: 40A (2P)

RCCB: 100mA (2P)

Surge Protection Device (SPD)

External Requirements:

MCB: 40A (2P)

RCCB: 100mA (2P)

Surge Protection Device (SPD)

Best For

Residential Homes & Apartments

Individual EV Owners

Daily Commuters

Private Parking Spaces & Garages

Villas & Gated Communities

Small Office Use (Home Offices)

Overnight Charging Needs

Personal Use with Single Vehicle

Safe & Convenient Home Charging Setup

Smart Powering Reliable Sustainable
Smart Powering Reliable Sustainable
Find a Charging Station

For a Cleaner, Brighter Future

Our Advantages

Clean Energy

Reduces pollution and supports a greener environment.

Lower Emissions

Helps cut carbon footprint for a cleaner future.

Future-Ready Infra

Scalable charging built for tomorrow’s needs.

Electric vehicle charging forms the foundation of modern electric mobility, driving innovation, advancing sustainability, and creating lasting environmental impact.

Do you have

Any question ?

What types of EV chargers does EV Cosmos offer?
EV Cosmos provides a complete range of charging solutions including AC chargers (3.3kW, 7.5kW, 10kW) and DC Fast Chargers (30kW, 60kW and above) suitable for residential, commercial, and highway applications.
Are EV Cosmos chargers compatible with all electric vehicles?
Our chargers support industry-standard connectors such as CCS2, Type 2, and AC001, ensuring compatibility with most electric cars and compliant EV models in India.
Do the chargers support smart connectivity and remote monitoring?
Yes. All chargers are OCPP-enabled and can be integrated with a Charging Management System (CMS) for real-time monitoring, automated billing, usage tracking, and remote diagnostics.
What safety features are included in EV Cosmos chargers?
Our chargers include advanced protection systems such as overcurrent, under voltage, leakage, short circuit, and over-temperature protection, ensuring safe and reliable operation.
Where can EV Cosmos chargers be installed?
EV Cosmos charging solutions are ideal for homes, apartments, offices, commercial complexes, fleet hubs, fuel stations, highways, and public charging networks across India.
